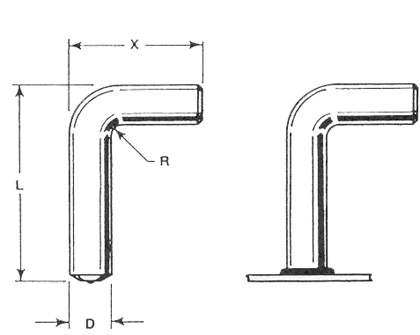

ARC – Bent – No Thread

STUD
D Min  L Min X Min R Ferrule Code
1/4 1 1/8 1 1/4 .125 F250
5/16 1 1/4 1 1/2 .218 F312
3/8 1 1/2 1 1/2 .218 F375
7/16 1 5/8 1 5/8 .250 F437
1/2 1 3/4 1 3/4 .250 F500
5/8 1 7/8 2″ .312 F625
3/4 2 3/4 3″ .500 F750
7/8 3 1/2 3 3/8 .500 F875


Material
Low Carbon Steel
C-0.23% max. P-0.04% max.
Mn-0.90% max. S-0.05% max.
Stainless Steel
AISI grade – 302/304/305 std.
Other grades available upon request
Mechanical Properties
Tensile……………………….60,000 psi (min.)
Yield………………………….50,000 psi (min.)
Elongation……………………20% (in 2 inches)

Values for various grades available upon request.
Plating Plating is not standard. Cadmium, Copper, Nickel are available upon customer request. Does not apply to stainless.


Ferrules*
Code B D E M
F250 .380 .455 .125 .390
F312 .445 .578 .156 .390
F375 .505 .640 .156 .390
F437 .585 .703 .188 .422
F500 .650 .795 .188 .438
F625 .785 1.030 .188 .516
F750 1.030 1.218 .188 .656
F875 1.203 1.406 .188 .732

*Ferrules are component parts of studs, and are included in the price.
