ARC – “J” Bolt

STUD

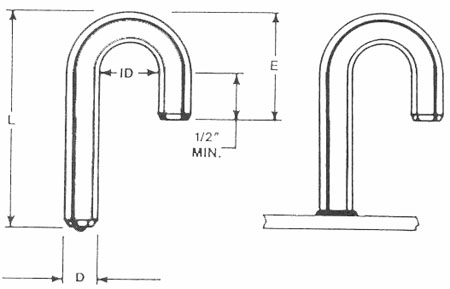

D Min  L Min ID Min E Ferrule Code
3/16 1 1/8 1/2 1 F187
1/4 1 1/4 5/8 1 1/8 F250
5/16 1 1/2 3/4 1 1/4 F312
3/8 1 5/8 7/8 1 3/8 F375
7/16 1 3/4 1 1 1/2 F437
1/2 2 1 1 1/2 F500
5/8 2 1/2 1 1/2 1 7/8 F625


Material
Low Carbon Steel
C-0.23% max. P-0.04% max.
Mn-0.90% max. S-0.05% max.
Stainless Steel
AISI grade – 302/304/305 std.
Other grades available upon request
Mechanical Properties
Tensile……………………….60,000 psi (min.)
Yield………………………….50,000 psi (min.)
Elongation……………………20% (in 2 inches)

Values for various grades available upon request.
Plating Plating is not standard. Cadmium, Copper, Nickel are available upon customer request. Does not apply to stainless.


Ferrules*
Code B D E M
F187 .305 .390 .156 .390
F250 .380 .455 .156 .390
F312 .445 .578 .156 .390
F375 .505 .640 .156 .390
F437 .585 .703 .188 .422
F500 .650 .795 .188 .438
F625 .785 1.030 .188 .516

*Ferrules are component parts of studs, and are included in the price.
