ARC – Rectangular – with Hole

STUD

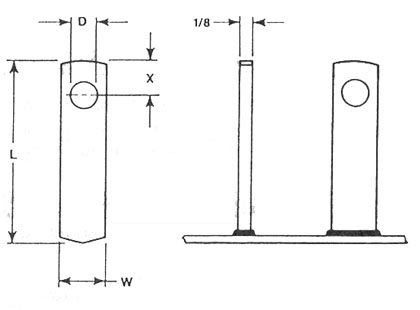

W Min L D X Ferrule Code
3/8 7/8 .203 5/16 R375
5/8 1″ .312 5/16 R625





Material
Low Carbon Steel
C-0.23% max. P-0.04% max.
Mn-0.90% max. S-0.05% max.
Stainless Steel
AISI grade – 302/304/305 std.
Other grades available upon request
Mechanical Properties
Tensile……………………….60,000 psi (min.)
Yield………………………….50,000 psi (min.)
Elongation……………………20% (in 2 inches)

Values for various grades available upon request.

Plating Plating is not standard. Cadmium, Copper, Nickel are available upon customer request. Does not apply to stainless.


Ferrules*

Code B D E M
R375 .505 .625 .156 .390
R625 .921 .500 .188 .438

*Ferrules are component parts of studs, and are included in the price.
