ARC – Shear Connector



STUD
D Min L HD HT Ferrule Code*
3/4 1 1/2 1 1/4 3/8 F750
7/8 2 1 3/8 3/8 F875

 *Note: “D” greater than 7/8 also available. There may be lead-times

Material Low Carbon Steel
AISI C1015, C1018, or C1020
Mechanical Properties Tensile……………. 55,000psi (min.)

Yield……………….

 50,000 psi (min.)
Elongation………… 20% (in 2 inches)
Reduction of Area.. 50% (min.)





*Shead Connectors are available for welding to flat surfaces, inside angles, outside angles, and “thru deck”. Each of these applications requires the proper style stud and ferrule, so please specify your application when ordering studs.

 Ferrules: Ferrules are component parts of studs. Ferrule exterior dimensions are available upon request.



Flat Surface (F) Inside Angle (IA) Outside Angle (OA)

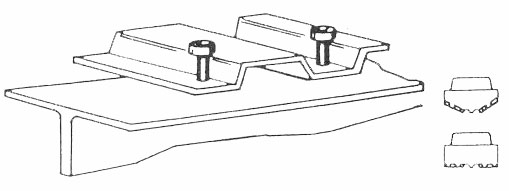

Weld Thru Deck (WTD)
