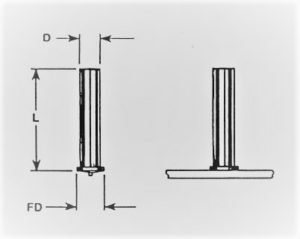

CD Flanged No Thread

STUD^

D

FD

MIN L
   3/32 0.174 0.250
0.115 0.203 0.250
  1/8 0.187 0.250
0.141 0.218 0.250
  5/32 0.250 0.250
0.161 0.250 0.250
  3/16 0.250 0.250
0.215 0.312 0.250
  1/4 0.312 0.375
0.273 0.375 0.375
  5/16 0.375 0.500
  3/8 0.500 0.500

^Metric Also Available

Material
Low Carbon Steel
C-0.23% max. P-0.04% max.
Mn-0.90% max. S-0.05% max.
Stainless Steel
AISI grade – 302/304/305 std.
Other grades available upon request
Mechanical Properties
Tensile……………………….60,000 psi (min.)
Yield………………………….50,000 psi (min.)
Elongation……………………20% (in 2 inches)

Values for various grades available upon request.
Plating Copper Flashing is standard. Does not apply to stainless.
Annealing Studs are annealed where required Studs are annealed where required
Material
Aluminum
 Alloy – 1100 & 5000 series
Other alloys available upon request
Brass
Alloy -(lead-free) 70-30 std.
Other alloys available upon request
Mechanical Properties Values for various alloys available upon request.

Values for various alloys available upon request.
